HeyLED Cinema Screen
Key Features
Ultra Wide Brightness Range
Ultra High Contrast Ratio
> 75% Pixel Fill Factor
16-bits Precision Gray-scale
High Dynamic Range
Accurate DCI-P3 Color Gamut

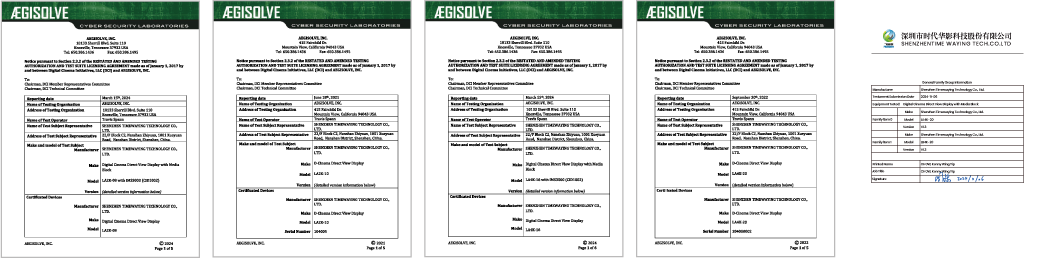

DCI Certification
The HeyLED DCI cinema screens are DCI Compliant, ensuring its suitability for day-and-date movie exhibition in cinemas. Rigorous testing guarantees manufacturing quality control and operational stability, marking a significant milestone in cinema technology advancement.
Explore Immersive Experience with
Ultra Contrast
30000:1 ultra-high intra frame contrast, 100 times more than many ordinary cinema indicators,
can present pure black, realize naked eye 3D effect and suspended 3D image with super stereoscopic sense.
Enhance Every Details with
Exceptional Brightness
48nit to 300nit wide brightness range, the peak brightness is 6 times brighter pictures than normal DLP standard,
providing sharper images with a plateau in brightness, clarity and depth of field.
Unique Optical Processing Technology
The unique patented optical technology can increase the pixel plumpness to more than 75%, improve the brightness uniformity,
effectively eliminate glare, reduce the graininess of the picture, and protect the eyes gently.
HDR Delivers Excellent Image Quality
With low reflectivity and peak brightness, it can present HDR format images.
The bright and dark parts show more details and restore the real world to a greater extent.
Unlock More Space
The elimination of the need for a projector room opens up opportunities for a more seating
and new design ideas including a VIP balcony, reclinder seating, etc.
Common Cinema
HeyLED Cinema
Application Fields
Technical Parameter
| Physical | Screen Dimension | Height：5500mm x Width：10000mm X Thickness：100mm |
| Cabinet Dimension | Height：500mm x Width：1000mm X Thickness：100mm | |
| Cabinet Quantity | 110 pcs（11 x 10） | |
| Pixel Pitch | 4.81mm | |
| Resolution（W x H） | 2080 x 1144 | |
| Image Resolution（W x H） | 2048 x 1080 | |
| Scope 2.39:1 | 2048 x 857 | |
| Flat 1.85:1 | 1998 x 1080 | |
| Weight | Screen G.W 1980Kg，LED Frame G.W ~2000Kg | |
| Installation | Stacking | |
| Electrical | Input | 100~240 VAC, 50/60Hz |
| Peak Power Consumption | 12000W（300nit 88fL with full white image） | |
| Average Consumption at High Brightness | 7,500 W (300nit/88fL with video image (3D 14fL)) | |
| Average Consumption at Mid Brightness | 6,000 W（at 150nit(45fL) with video image） | |
| Average Consumption at Low Brightness | 5,200 W（at 48nit/14fL with video image） | |
| Optical | Normal Brightness | 2D：14 fL(48 nit) |
| Recommanded Brightness | 2D：45 fL(150 nit) | |
| Maximum Brightness | 2D：87.56fL(300 nit)/3D:14 fL(48 nit) | |
| Contrast Ratio | ∞：1 | |
| Viewing Angle- horizontal | 160° | |
| Viewing Angle- vertical | 160° | |
| Color | 281000000000000 | |
| Grayscale | R,G,B 16Bit | |
| Color Gamut | DCI-P3 | |
| Video | 2D Support Frame Rate | 24fps/48fps/60fps |
| 3D Support Frame Rate | 2K 3D DCP 60fps、 4K 3D DCP 48fps | |
| Video Format & Grayscale | DCP (12 bit XYZ), Digital Coding JPEG2000 | |
| LED Refresh Rate | 1,500 to 9300Hz | |
| External Input Video | HDMI 2.0,2D | |
| Operation Condition | Operating Temperature/Humidity | 0~40℃（32-104°F）/ 10~80 %RH |
| Storage Temperature / Humidity | -20~45 °C(-4~113°F) / 5~95 %RH | |
| Waterproof and dustproof grade | IP20 | |
| LED Lifetime | 100,000 hours to half brightness | |
| Certification | Certification | DCI, CCC, CE/UL, EMC Class A, Safety 60950-1 |
| Maintenance | Maintenance | Rear Maintenance |
