HeyLED Cinema Screen
LA2K-10
You'll See the Light.
HeyLED Cinema Screen
HeyLED Cinema Screen refers to the high end cinematic immersive experience. Revealing pure colour, true black, and higher contrast and brightness, delivers picture as you’ve never seen it before.
Deliver Stunning Image on a Truely Black Screen
LED screen can disappear into the background, providing a “Floating Image” 3D experience.
Deep Immersion
Mind-blowding 3D Stunning experience
Deliver Real Pure colors in the DCI-P3 Color Gamut
Ultra high contrast delivers precise, true colors, and more details.
Free Up Space for Cinemas
The elimination of the need for a projector room opens up opportunities for a more seating and new design ideas including a VIP balcony, recliner seating, etc.
Technical Parameter
| ltem | LA4K-10 | LA4K-12 | LA4K-14 | LA4K-16 | LA4K-18 | LA4K-20 | LA4K-22 |
| Screen Size(W x H) | 10m * 5.5m | 12m * 6.5m | 14m * 7.5m | 16m * 8.5m | 18m * 9.5m | 20m * 10.5m | 22m * 11.5m |
| Pixel Pitch | P2.40 | P2.91 | P3.38 | P3.91 | P4.39 | P4.81 | P5.21 |
| Screen Weight | 1,430kg | 2,028kg | 2,730kg | 3680kg | 4,446kg | 5670kg | 5,980kg |
| Max Power 300nits | 5,820 W | 7,020 W | 9,450 W | 12,700 W | 16,245 W | 26,082 W | 30,260 W |
| Average Power 48nits | 1,640 W | 1,940 W | 2,150 W | 4,650W | 4,415 W | 6,720 W | 9,086 W |
| Resolution(W x H) | 4096 *2160 | ||||||
| Cabinet size(W x H) | 1000*500mm | ||||||
| Input Power | 100~240VAC 50/60Hz | ||||||
| Brightness (Adjustable) | 48nits/150nits/300nits | ||||||
| Contrast Ratio | 60000:1 | ||||||
| Viewing Angle-horizontal | 160° | ||||||
| Viewing Angle-vertical | 160° | ||||||
| Grayscale | RGB 16bit | ||||||
| Color Gamut | 100% DCI-P3 | ||||||
| 2D Frame Rate | 24,25,30,48,50,60,96,120 fps | ||||||
| 3D Frame Rate(per eye) | 24,25,30,48,50,60fps | ||||||
| Video Format | DCP (12 bits XYZ), Digital Coding JPEG2000 | ||||||
| Refresh Rate | 1,500 Hz to 9300 Hz | ||||||
| External Part | Server HDMI2.0 / LED controller HDMI2.1 | ||||||
| OperationTemp./Humidity | -10~40°C(14~104°F) / 10%~90%RH | ||||||
| Storage Temp./ Humidity | -20~60°C(-4~140°F) / 10%~95%RH | ||||||
| Protection Level | IP20 | ||||||
| LED Lifetime | 100,000 hours (Half brightness) | ||||||
| Certification | DCI, CCC，CE/UL, EMC Class A, Safety 60950-1 | ||||||

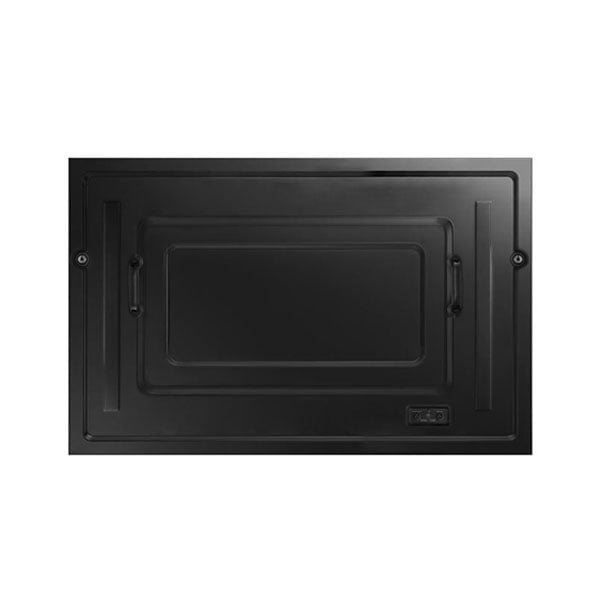

| Maintenance | Rear Maintenance | ||||||
| Warranty | 3 years factory warranty, extendable up to 8 years | ||||||
